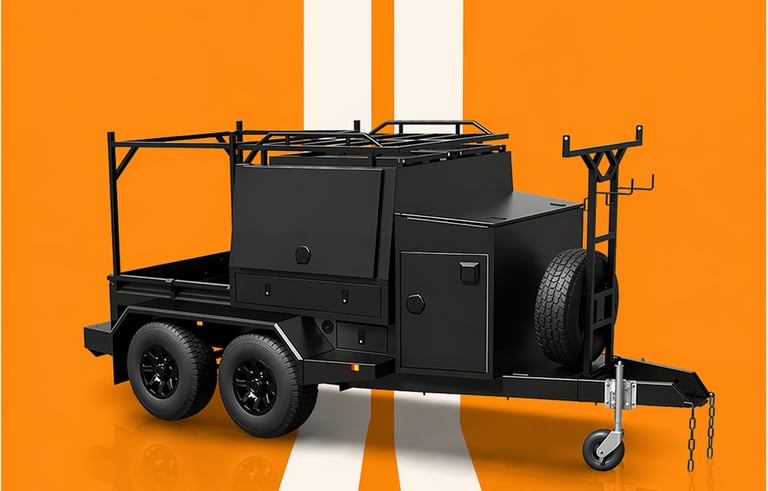

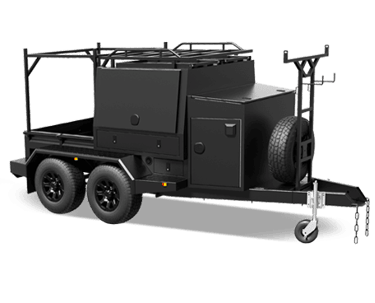

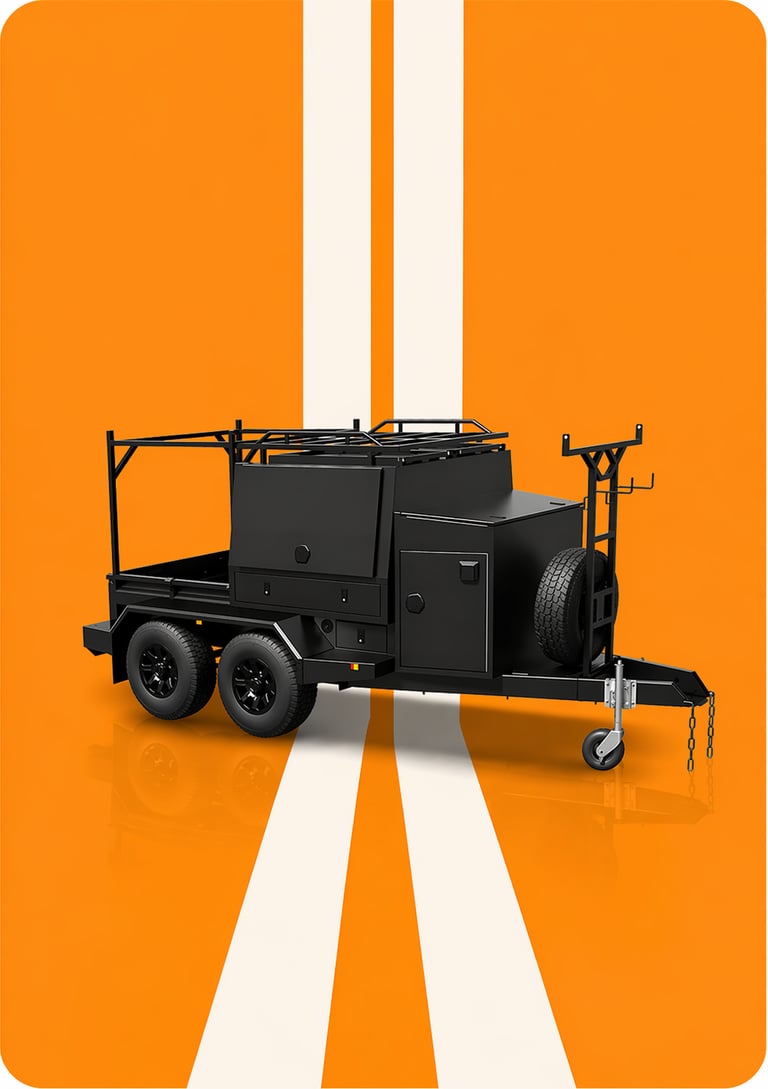

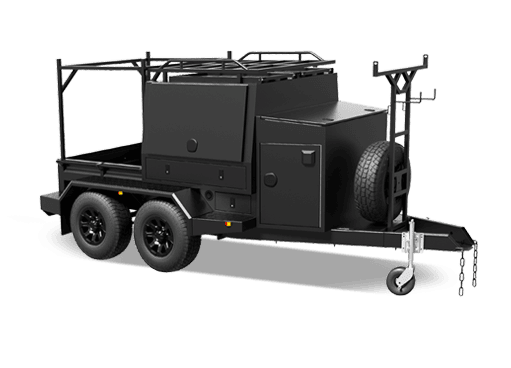

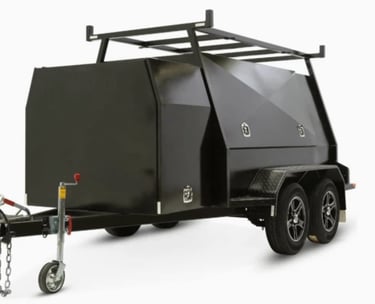

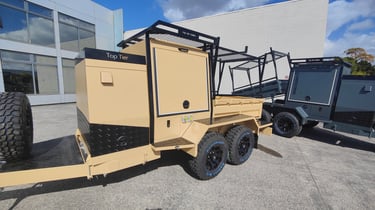

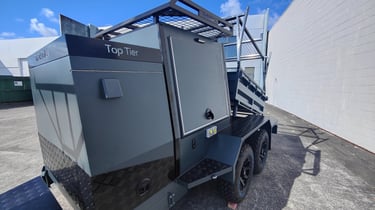

T3 ONSITE Cross Tradie Trailer

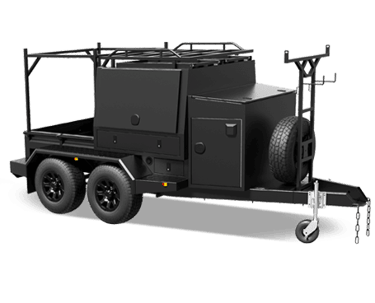

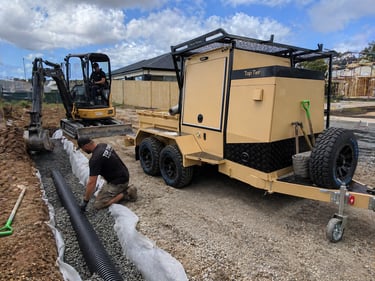

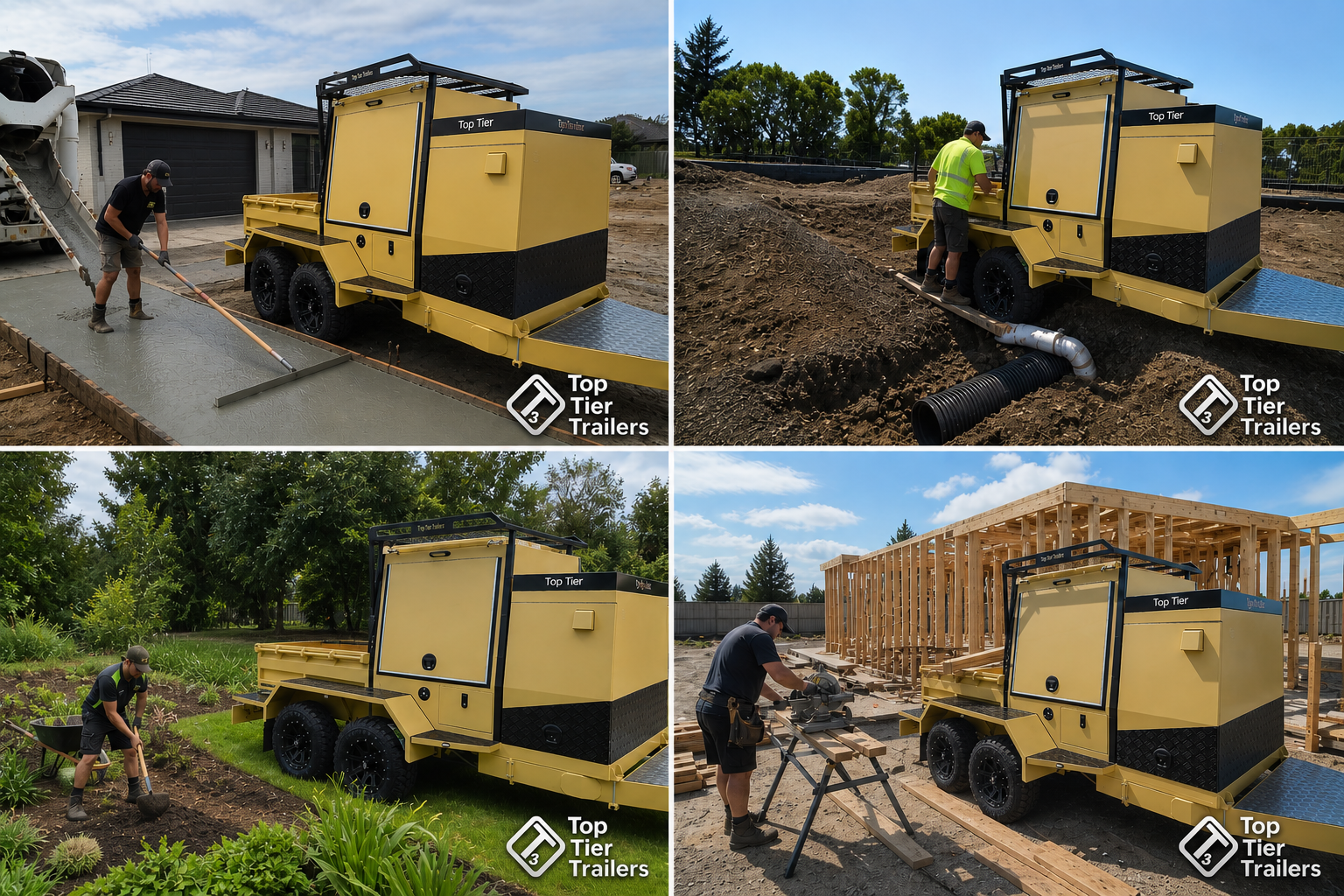

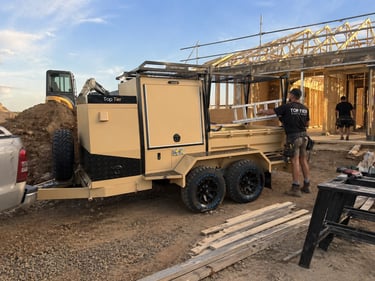

The Onsite Cross is our hybrid tradesperson trailer. Built for the tradie who requires versatility in a trailer. Offering a similar type of secure storage, organisation with trays, drawers and cavities as the T3 Onsite Ultra, however, the rear half is a walled tray ideal for material or large machine storage such as concrete mixers and plate compactors. A great option for landscapers, drainlayers, or add one of our rooftop tents and you have a great weekend toy hauler.

If you'd like to add something we've left out, like an internal toolbox or a place to hang your battery tools, then we can arrange this pre delivery.

Available to order in any colour from the RAL colour chart. We can also add a sign-writing package to turn your trailer into a mobile billboard.

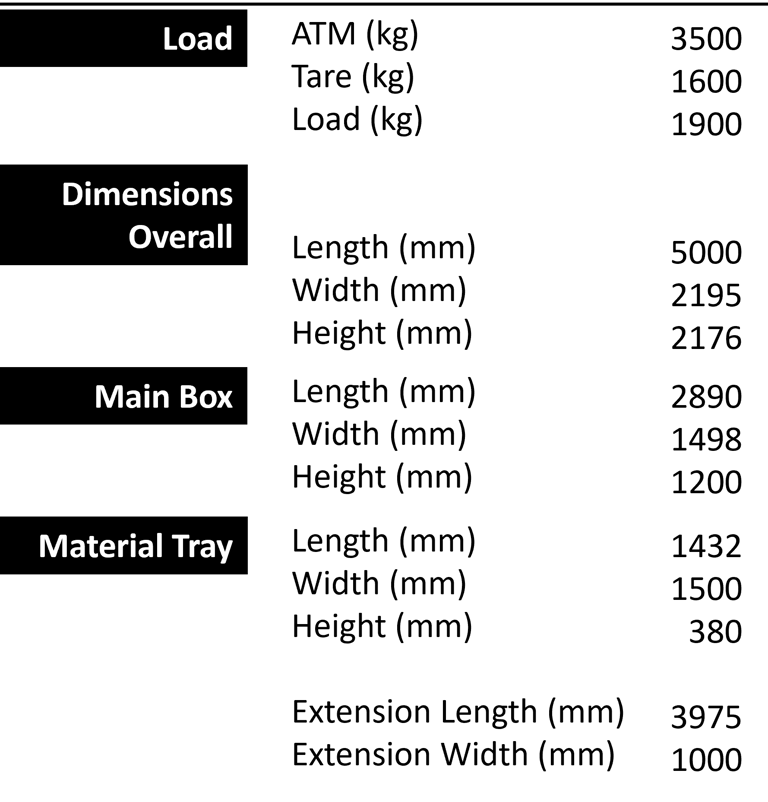

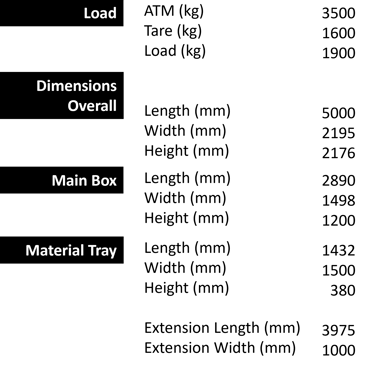

Specs and Dimensions

Aggregate trailer mass (ATM): 3500kg

Tare Weight: 1600kg

Load capacity: 1900kg

Overall dimensions: 5000mm L x 2195mm W x 2176mm H

Body dimensions: 2890mm L x 1498mm W x 1200mm H

Main box dimensions: 1468mm L x 1498mm W x 1200mm H

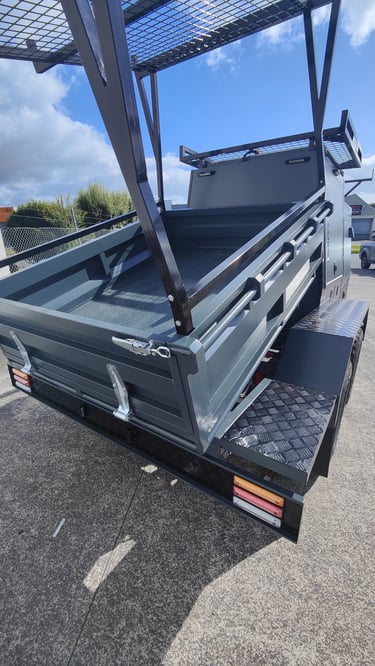

Open flatbed dimensions: 1432mm L x 1500mm W x 380mm H

Extended Tradesman Rack dimensions: 3975mm L x 1000mm W

Galvanised steel with custom RAL powder-coated finish in matte or gloss

Storage & Access

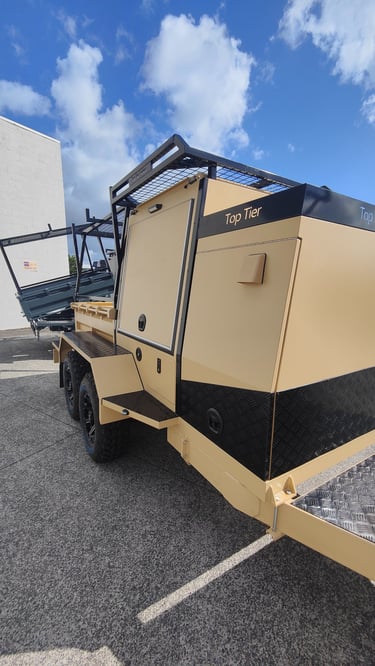

2 Large Side Doors with heavy-duty gas struts and a large internal cavity

4 Side storage drawers

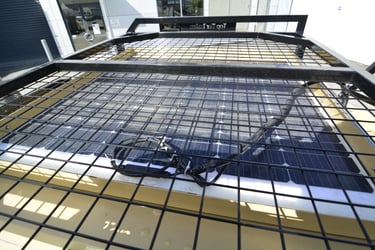

Full-length top rack with upper roller

1 Front cupboard with slide out tray suitable for generators, compressors or 12v fridge

1 Small cupboard

1 Top-mounted tool bay

Water System

Water inlet from an external source

Water tank 80l with inbuilt pump and water tap mounted to front draw-bar, also featuring a stone guard

Electrical System

Circuit control panel (NZ Certified)

2x 100mAh Maintenance-free battery

2000w Invertor connected to 2x 3 pin 240V sockets with on/off switches

USB socket & 12V Lighter Socket

2x 50a Anderson Plugs (Solar and Vehicle Connection)

LED Lighting inside and out

Safety System

Security alarm system with central locking on main doors

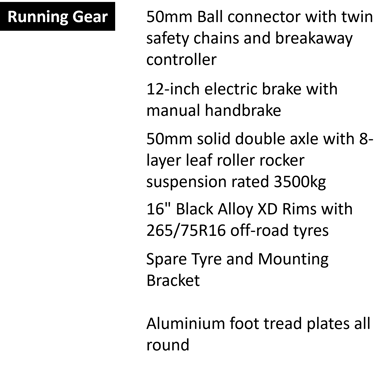

50mm Ball connector with twin safety chains and breakaway controller

12-inch electric brake with manual handbrake

50mm solid double axle with 8-layer leaf roller rocker suspension rated

3500kg

16" Black Alloy XD Rims with 265/75R16 off-road tyres

Spare Tyre and Mounting Bracket

From $27,825 excluding GST
